| 유형: | D번째개 비트 | 재료: | 침탄강 |
|---|---|---|---|
| 처리 유형: | 열처리 + 가공공정 | 정강이: | M60 |
| 크기: | 6 " | 비트 직경: | 152-203mm |
| 암석 경도: | 화강암, 석회석, 석영 | 플러싱 홀: | 2*26(게이지), 8*18(전면) |
| 버튼 직경: | 26mm(게이지), 18mm(전면) | 무게: | 23-31kg |
| 부품 번호.: | HD65 시리즈 | 드릴링 깊이: | 제한이 없습니다 |
| 드릴링 홀 직경: | 105mm-254mm | 충격 전력: | 최고 |
| 공기 소비: | 낮은 | ||
| 강조하다: | Heat Treatment DTH Drill Bit,Geothermal Drilling DTH Bit,Civil Engineering Down The Hole Bit |
||
Sollroc, with over 10 years of experience, is a professional manufacturer and supplier of high-performance rock drilling tools including DTH hammers and bits, RC hammers and bits, DTH drill rods, and top hammer drilling tools. Our products are widely used in mining, quarrying, water well drilling, and geotechnical industries.
We specialize in designing, manufacturing, and developing equipment for standard models and custom client needs. Our strict quality control processes ensure durable, superior products that meet all industry standards.
The DTH drilling system uses compressed air to power down-the-hole impact mechanisms. The piston's reciprocating motion, controlled by the hammer's distribution device, transfers impact power to the DTH bit, which breaks rock to drill holes.
| Bit Diameter | Flushing Holes | Gauge Buttons | Front Buttons | Weight (kg) | Part No. |
|---|---|---|---|---|---|
| 152mm (6") | 2*26 | 8*18 | 4*16+4*14 | 23 | HD65-152 |
| 156mm (6 1/8") | 2*26 | 8*18 | 4*16+4*14 | 23.5 | HD65-156 |
| 160mm (6 5/16") | 2*26 | 8*18 | 4*16+4*14 | 23.5 | HD65-160 |
| 165mm (6 1/2") | 2*26 | 8*18 | 8*16 | 24 | HD65-165 |
| 171mm (6 3/4") | 2*26 | 8*18 | 10*16 | 25 | HD65-171 |
| 185mm (7 1/4") | 3*22 | 9*18 | 10*16 | 27 | HD65-185 |
| 190mm (7 1/2") | 2*26 | 10*18 | 13*16 | 28 | HD65-190 |
| 203mm (8") | 2*26 | 10*18 | 14*16 | 31 | HD65-203 |

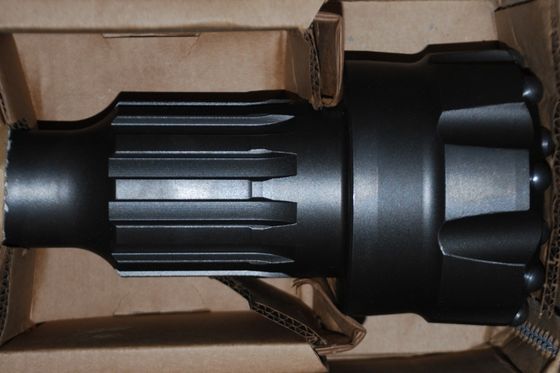

The Mission60 DTH bit offers high flatness, smooth hole walls, and excellent rigidity. It operates independently of high axial thrust with no drilling depth limitations, while maintaining low device costs and easy maintenance. Ideal for drilling holes from 105mm to 254mm in diameter.
DTH drilling tools are widely used in:
