5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling

5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling
5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling 5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling 5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling 5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling 5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling 5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling

큰 이미지 :  5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling

제품 상세 정보:
원래 장소: 중국 후난성
브랜드 이름: SOLLROC
결제 및 배송 조건:
최소 주문 수량: 1
가격: $200
접촉

5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling

설명
무게: 15kg 재료: 침탄강
처리 유형: 열처리 및 가공 공정 실: 제1항
비트디아.: 133mm, 140mm, 146mm, 152mm, 165mm 번호 공기 구멍: 2
게이지 버튼: 7×Ø16, 7×Ø18, 8×Ø18, 8×Ø18, 8×Ø18 전면 버튼: 6×Ø14, 7×Ø14, 7×Ø14, 8×Ø14, 8×Ø16
비트 가중치: 15.5kg, 16.0kg, 16.5kg, 17.0kg, 19.0kg 부품 번호: SD5-130, SD5-140, SD5-146, SD5-152, SD5-165
비트 헤드 유형: 볼록형, ​​평면형, 오목형 삽입 유형: 탄도형, 반탄도형, 돔형
생크 크기: 5 1/4", 5 1/2", 5 3/4", 6", 6 1/2" 암석 경도: 부드러움에서 중간, 단단함에서 매우 단단함
드릴 비트 삶: 긴
강조하다:

5 Inch DTH Drill Bit

,

Carburized Steel Down the Hole Bit

,

High Performance SD5 Drill Bit

SD5 Down the Hole Drill Bits - 5 Inch DTH Bit for Mining
Product Overview
Our SD5 series Down the Hole drill bits are engineered for optimal performance in various mining applications. Available with three distinct bit head configurations - Convex, Flat Face, and Concave - each paired with specialized inserts to handle any rock formation challenge.
Optimal Bit Selection
Choosing the right drill bit depends on productivity and reliability requirements. For soft to medium rock formations with high penetration rates, ballistic and semi-ballistic inserts combined with flat face or concave bit heads deliver superior performance. For hard to very hard rock formations, domed inserts with convex heads provide extended drill bit life and durability.
Company Expertise
  • Over 10 years of specialized experience in manufacturing drilling tools and spare parts
  • Advanced manufacturing technology and equipment
  • Technical team with more than 13 years of professional expertise
Technical Specifications
DTH Bits Shank Bit Dia. (mm/inch) No. Air Holes Gauge Buttons Front Buttons Weight (Kg) Part No.
SD5 133 / 5 1/4" 2 7×φ16 6×φ14 15.5 SD5-130
SD5 140 / 5 1/2" 2 7×φ18 7×φ14 16.0 SD5-140
SD5 146 / 5 3/4" 2 8×φ18 7×φ14 16.5 SD5-146
SD5 152 / 6" 2 8×φ18 8×φ14 17.0 SD5-152
SD5 165 / 6 1/2" 2 8×φ18 8×φ16 19.0 SD5-165
Product Features
  • Ideal for water well drilling, micro piling, geothermal applications, and anchoring
  • Consistent and reliable performance in demanding conditions
  • Extended service life through durable construction
  • Easy maintenance and serviceability
  • Stable operation and precise drilling performance
Applications & Keywords
water well drilling geothermal drilling micro piling rock drilling ground drilling drilling tools DTH bits mining equipment

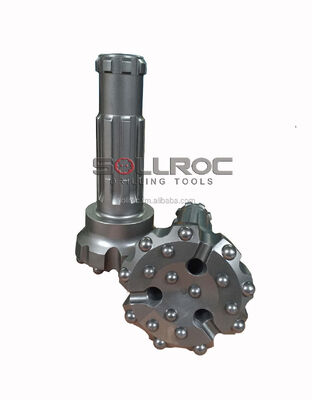

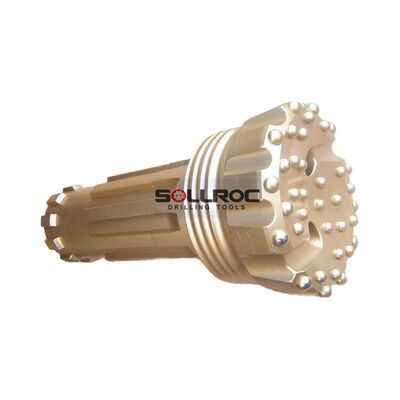

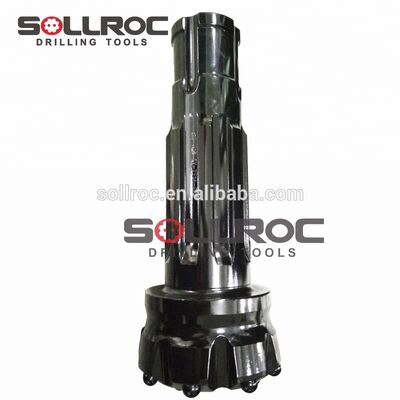

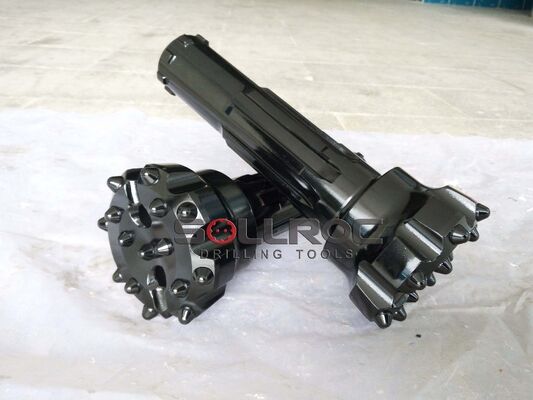

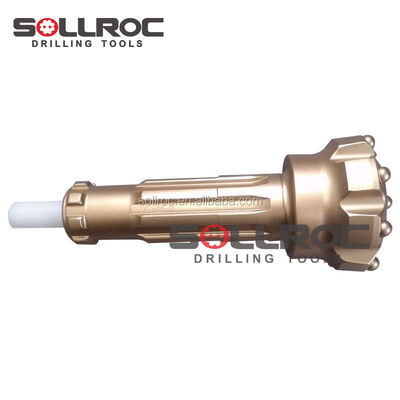

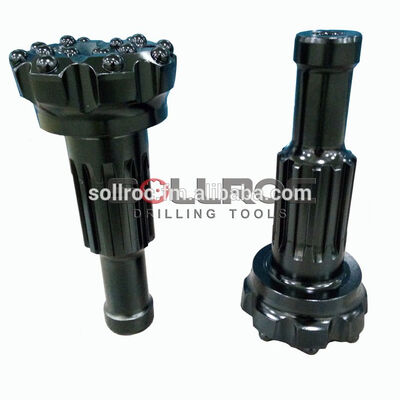

Product Images
5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling 0
Shipping & Packaging
Shipping Methods: By Air, By Sea, or By Express
Packaging: Ply-wooden cases + Pallet
5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling 1
5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling 2
